Drive Belt - 2007 BMW 328i Sedan (E90)

Remove fan cowl.

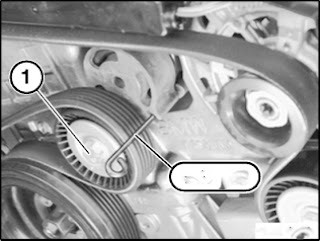

Mark the direction of rotation of the drive belt if it is to be reused. Layout of drive belt.
















Use 16mm box end wrench on to turn bolt on tensioner clockwise.
Turn belt tensioner (4) in direction of arrow until bore (2) is flush on housing.
Hold belt tensioner under tension.

















Secure belt tensioner with 1/8" metal pin into (5) hole.
Remove drive belt towards top.
